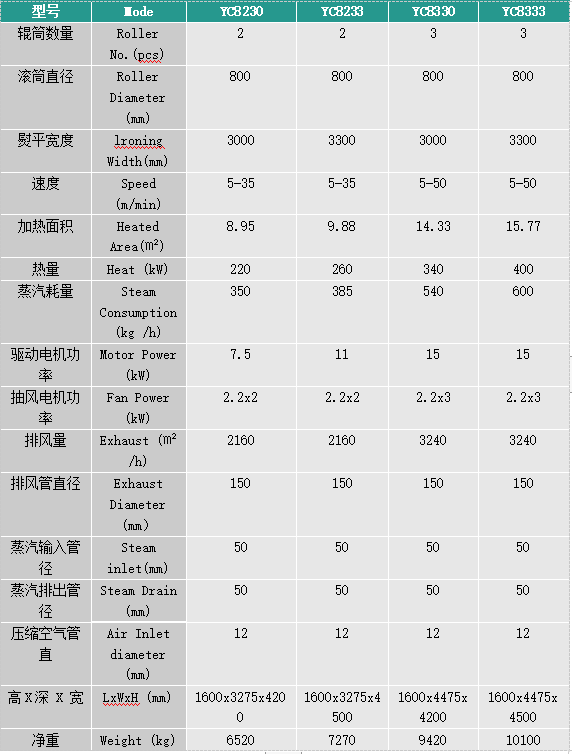

- YC80 Series chest ironer
Functional features:
1, modular design, unified design platform, steam heating, a variety of configuration options. The whole series planning rolling diameter of 800mm, two roller, three roller two combinations, working width of 3000mm, 3300mm two specifications;
2, the newly designed steam heating groove, specific unique multi-channel heating chamber double heat cycle design full use of heat energy, higher efficiency;
3, self-supporting structure, the drum relies on a solid and invariable tank support, pressure balance. Simple and reliable structure, smooth operation, easy maintenance;
4, efficient dehumidification and exhaust system to ensure the evaporation of hot water discharge, to ensure that the tank dry, fast dry fabric;
5, automatic computer control, intuitive and readable operation control interface, operators hold and operate;
6, the use of groove, silver integrated connecting rod to support the pressure balancing structure, to ensure the balance of pressure between the silver cylinder and the groove under all working conditions, effectively ensure the blanching quality, extend the service life of felt, spring and other vulnerable parts;
7, progressive device, ironing use the same driving device to ensure the optimization and stability of the difference between the silver, to provide a matched difference ratio for the quality of the ironing to provide a reliable guarantee.
