- Automatic towel folding machine
- Brief description:
Folding is mainly carried out by pulsed air flow. The machine will automatically measure the length of the cloth before the cloth completely enters the first fold. Based on this, many folding styles can be selected. The folding board will automatically put the cloth in the correct position, and the air nozzle of the wool fold will spray air to turn the cloth on the folding board. The machine is equipped with two longitudinal folding options. Each longitudinal fold is realized by reverse band combined with pulse blowing. The result must be a very precise and rigorous vertical fold. Through programming, the position of linen folding can be specified, and several vertical folding modes can be realized. Besides, bypass (without vertical folding) can also be realized
characteristic:
1. The height of the towel folding machine is adjustable to meet the operation of operators of different heights. The feeding platform is lengthened to make the longer towel have better adsorption
2. Compared with similar equipment, the movable parts are the least and all adopt standard parts, which has better adjustability when replacing the transmission belt
3. After folding, it will fall directly on the special stacker below. When it is stacked to a certain height, the linen will be transported to the front or back of the equipment
4. It can automatically identify and classify according to the length of various types of linen, so it is not necessary to sort the same length of linen in advance. If different folding methods are required, you can also choose to adjust the width classification
Description:

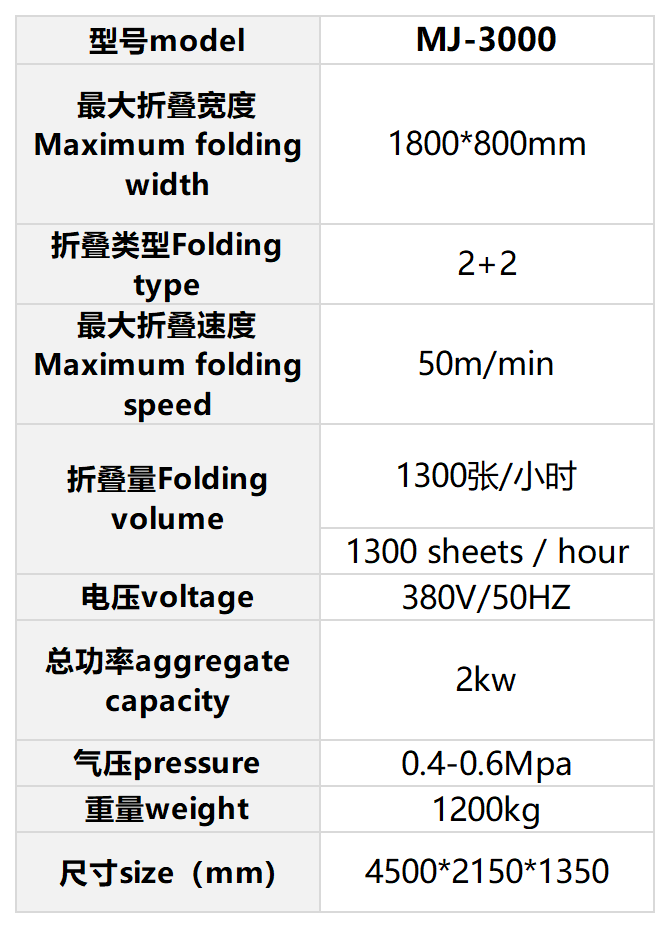

Technical parameter：
