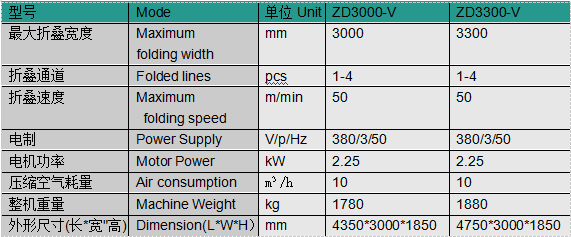

- ZD3000-V/ZD3300-V Sheet folder
Functional features:
1, the company's newly developed folding machine with cloth width and narrow recognition ability, high folding accuracy, humanized design, the use of highly intelligent LCD touch screen operating system, with a good human-machine interface.
2, folding standard of discriminant protection and alarm with self-diagnosis and automatic management system;
3, horizontal and vertical folding start control, can achieve two horizontal and two vertical four-channel folding;
4, with speed closed-loop and photoelectric detection control system and speed measurement system, the key parts of the transmission system using imported parts;
5, with the speed control and correct positioning of the linen transmission system, the correct measurement and calculation of the length of the linen;
6, transverse folding configuration up to four channels of broken bone working mode, linen does not have to synchronize input, linen does not have to be the same size, four times to improve work efficiency;
7. With the speed control and accurate positioning of the cloth transfer system, the cloth length is accurately measured and the folding length is calculated;
8, highly intelligent PLC and touch screen, high reliability, long life, fault finding method and easy to use and intuitive operation;
9, the use of intelligent infrared inspection system to measure the length of the fabric and the actual speed of movement, improve the folding accuracy;
10, with folding standard identification, ultra-wide folding, protection and alarm, to ensure high quality folding effect;
11, perfect self-diagnosis function and safety protection system, convenient for daily use and maintenance of the machine;
12, the domestic initiative to eliminate static electricity function (optional: in addition to electrostatic rod), effectively reduce the static electricity on the cloth, reduce the cloth voucher, wrinkling and other problems, improve the folding quality, but also increase the reliability and stability of the machine;
13. The domestic patent project turns over the electrostatic mechanism, eliminates the static electricity on the conveyor belt, and avoids the adhesion of the cloth and the conveyor belt during the folding process.
