- Automatic Folder
- Purpose:
The automatic folding machine is suitable for docking with various ironing machines and is the subsequent supporting equipment of the ironing machine. It is used to automatically fold and output the flat fabric output by the ironing machine.
Brief description:
L large screen liquid crystal display and intelligent control system are adopted, with good man-machine dialogue interface.
L two horizontal and three vertical folding functions with 5 folds and 32 layers at most.
L the folding action is completed by the intersection of air flow and knife switch action to ensure the folding quality.
L the intelligent PLC control system, frequency converter and microprocessor computer are used to form the control system, with accurate calculation, accurate discrimination and action output, so as to ensure the folding accuracy.
L imported photoelectric detection and sensing parts, sensitive and accurate; 24V low-voltage control circuit, safe and reliable, easy to maintain.
Users can choose one, two or five fold output at will according to the size of the cloth.
L suitable for connection with various types of stackers.
L double channel and four channel folding machines can be customized according to user needs.
Description:

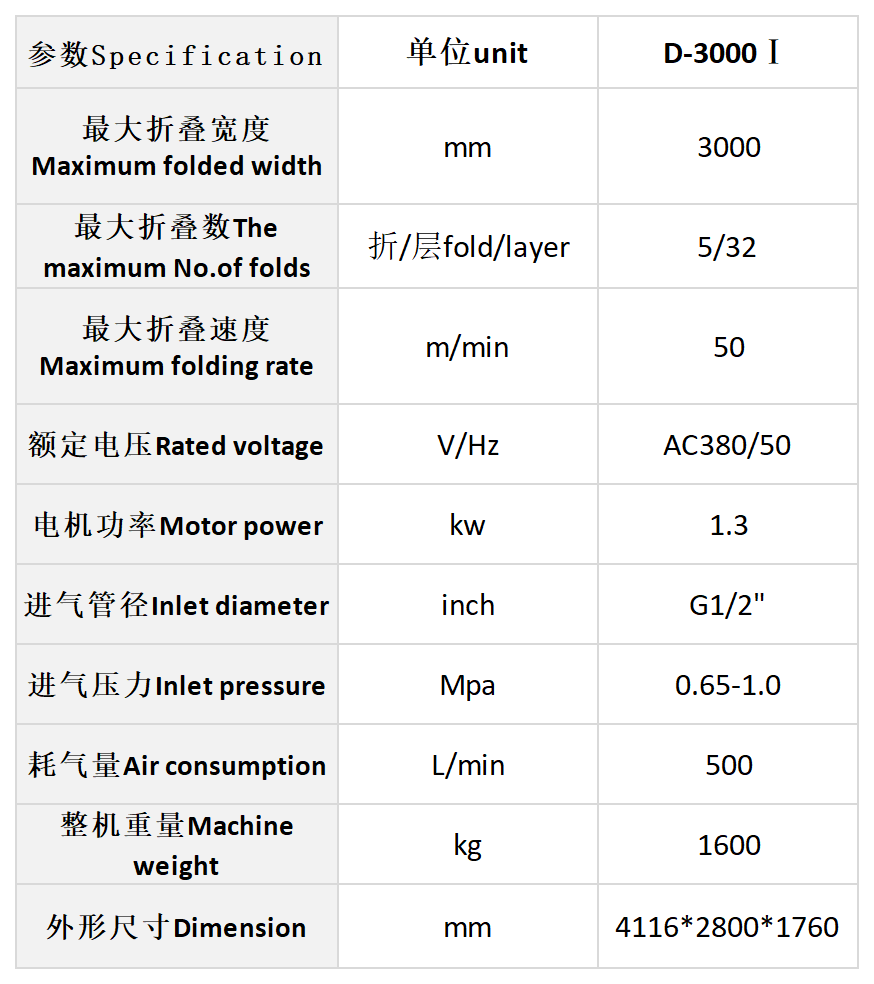

Main parameters:
